Bridge:
	Span, Rail to Rail-------------------56'
	Wheels-------------------------------4
	Wheel Configuration--------------80# Rail Size
	Bumpers	4,---------------------------Rubber

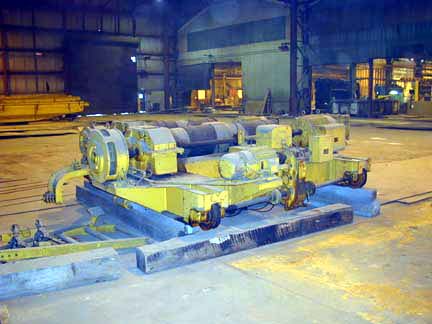

Trolley:
	Type D10-W12 ------------------------2 Hoists
	Wheel Spread ------------------------8'6"
	Wheel Configuration -------------40# Rail Size
	Bumpers	-------------------------Spring Type
Main Hoist Capacity, Type 4T50215 -----------20 Tons
Auxiliary Hoist Capacity, Type 2T50215 ------10 tons
Lift Height ---------------------------------22'
Top of Trolley To Bottom Of Bridge ----------5'10"
Top Of Trolley To Hooks	------------------5'6" Minimum
Main Hoist Motor ------------50 HP, 1140 RPM, 440/3/60
Auxiliary Hoist Motor -------30 HP, 1200 RPM, 440/3/60
Trolley Drive Motor ------7-1/2 HP, 1140 RPM, 440/3/60
Bridge Drive Motor ----------10 HP, 1200 RPM, 440/3/60
Approximate Shipping Weight ---------------47,000 Lbs.

Pendant With Push Button And Radio Control unit
Walk-Ways Full Length Of Bridge

$32,500.00 FOB ROCKFORD, ILLINOIS
